Urology
Products
Single use Flexi UR & Cysto Scopes
Endo Urology consumables range.
Laser machine 35Watt.
ESWT-ED Focus shockwave, ESWL electro magnetic, lithotripsy Ultrasonic & Pneumatic PCNL stone breaking Devices
Oruba Technology Uroflow analysers
Redpine Scopes
Click Pic's for Brochure
6.3fr single use Flexi UR scope
RP-U-C04R9
≥275° Flexible Dual passive Deflection supports manoeuvrability during lower calyx procedures.
-1.1mm 3.3fr (in max of insertion part)
-2.1mm 6.3fr O.D provides smooth insertion and reduced renal pressure.
-Multifunction buttons-configure option
-BI Enhanced Band Imaging 400*400 CMOS led on tip for perfect vision
-Ultra slim insertion, round working channel (kink-resistant multi-layer metal core bone structure)
-Lightweight ergonomically handle, easy soft control
-Auto Position hold.
-(polymer material) Inner layer PTFE improves smoothness for passing. accessories
​
Field of view：120°
Depth of field：3mm～50mm
7.5fr Flexi Single use Ur Scope
RP-U-C03R9
≥285° Flexible Dual passive Deflection supports manoeuvrability during lower calyx procedures.
-1.2mm 3.6fr (in max of insertion part)
-2.5mm 7.5fr O.D provides smooth insertion and reduced renal pressure.
-Multifunction buttons-configure option
- EBI Enhanced Band Imaging 400*400 CMOS led on tip for perfect vision
-Ultra slim insertion, round working channel (kink-resistant multi-layer metal core bone structure)
-Lightweight ergonomically handle, easy soft control
-Auto Position hold.
-(polymer material) Inner layer PTFE improves smoothness for passing. accessories
​
Field of view：120°
Depth of field：3mm～50mm
15fr HD Cystoscope
RP-U-C01F
≥225° Flexible Dual passive Deflection supports manoeuvrability during lower calyx procedures.
-6.6fr (inner diameter)
-15fr O.D provides smooth insertion
-Working length 380mm
-Multifunction buttons-configure option
-1000 x1000 Pixels HD LED for perfect vision
-Lightweight ergonomically handle, easy soft control ​
-(polymer material) Inner layer PTFE improves smoothness for passing. accessories
​
Field of view：120°
Depth of field：3mm～100mm
13.2 fr Standard Cystoscope
RP-U-C0202
≥225° Flexible Dual passive Deflection supports manoeuvrability during lower calyx procedures.
-6.6fr (inner diameter)
-13.2fr O.D provides smooth insertion
-Working length 380mm
-Multifunction buttons-configure option
-Standard LED for perfect vision
-Lightweight ergonomically handle, easy soft control ​
-(polymer material) Inner layer PTFE improves smoothness for passing. accessories
​
Field of view：120°
Depth of field：3mm～100mm
Ingles Vedkang medical
7.5fr Flexi URS
8.5Flexi Urs
≥275° Flexible Dual passive Deflection supports manoeuvrability during lower calyx procedures.
-2.6mm (in max of insertion part)
-7.2fr O.D provides smooth insertion and reduced renal pressure.
-Independent laser Port channel
-2 Multifunction buttons-configure option
-400*400 CMOS lead on tip for perfect vision
-Rotation control facilitates easy and accurate angle adjustment. left & right 120
-Ultra slim insertion, round working channel (kink-resistant multi-layer metal core bone structure)
-Lightweight ergonomically handle, easy soft control
-Auto Position hold.
-(polymer material) Inner layer PTFE improves smoothness for passing. accessories
​
Field of view：120°±10%
Depth of field：3mm～100mm
Ingles Guide wires 0.025 & 0.035
Ingles -Guide Wire
VedWire™ Hydrophilic Guidewire
The VedWire™ Hydrophilic Guidewire is used in combination
with an endoscope for guiding catheters and device insertion
in non-vascular therapy
- Anti-twist Niti core wire provides excellent manoeuvring and
pushing force
- Super smooth PTFE zebra coating facilitates movement
through the working channel
- Yellow and black coating facilitates tracking of guidewire and
visibility under x-ray
- Innovative triple anti-drop design of hydrophilic tip, no risk of
drop-off
0.025
order code :VDK-ZGW-63-150-A
order code :VDK-ZGW-88-150-A
0.035
Ingles - Grasping Forceps
VedGrasper™ Grasping Forceps
The VedGrasper™ 6Fr Single Use Grasping Forceps are used in combination with an endoscope for the removal of foreign bodies in the human body.
- Rat tooth profile & Alligator teeth is suitable for grasping complex shape foreign bodies (e.g. retrieval of irregular shaped stent)
order code :VDK-FG-23-230-A2

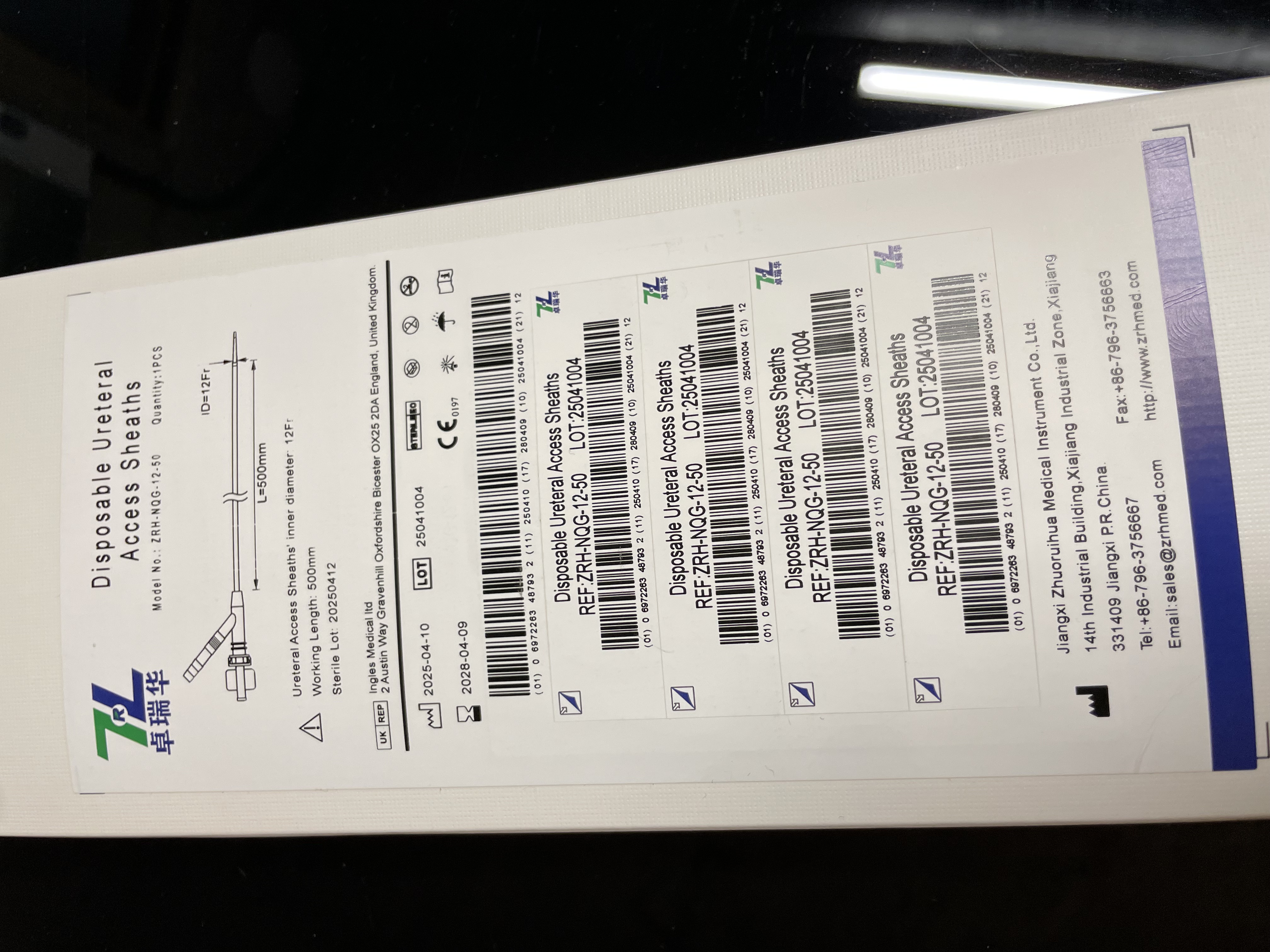

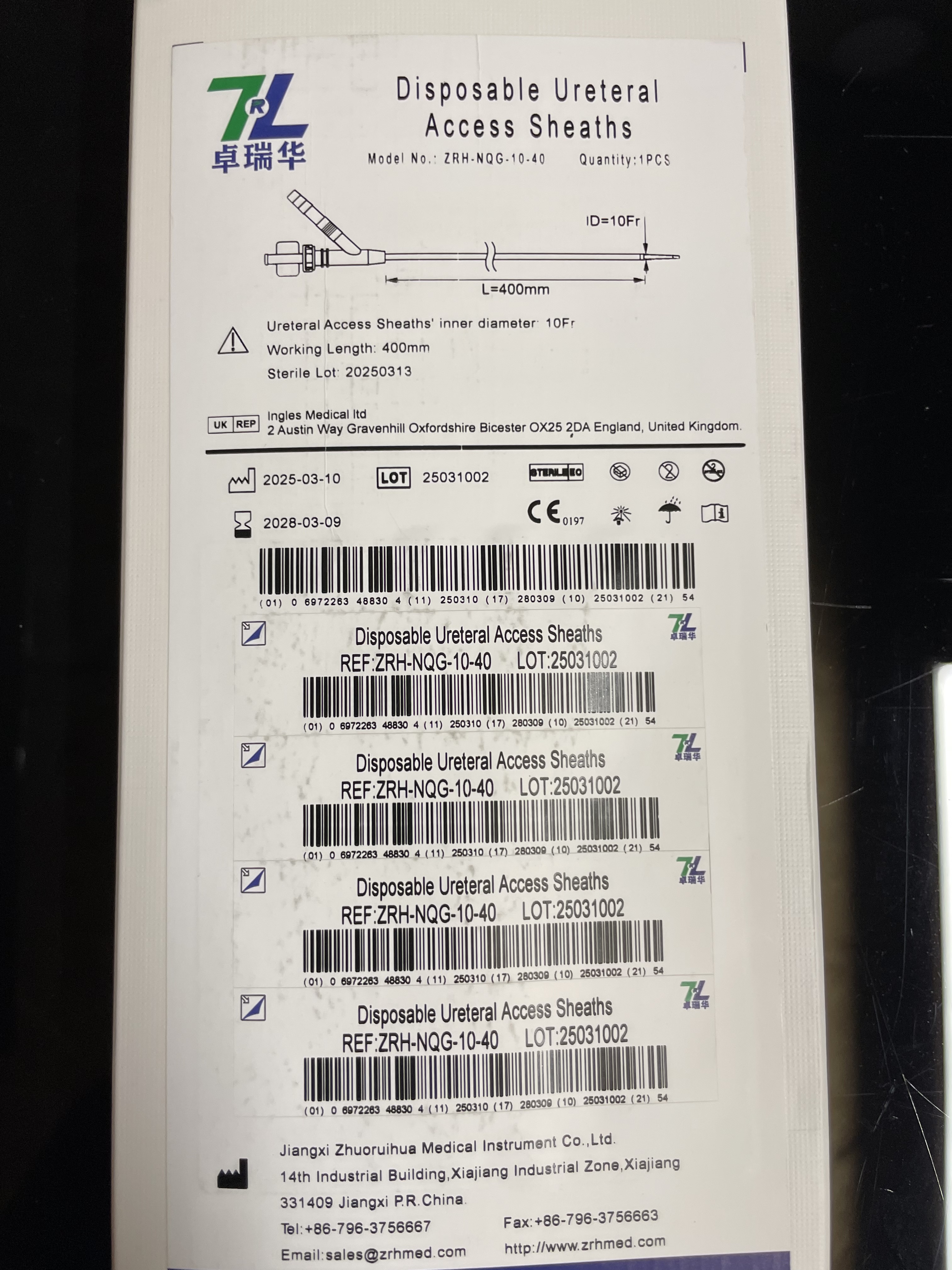

Standard Ureteral Access Sheath
Urology
structure: PTFE (inner) + stainless steel coil + Pebax (outer)
hydrophilic coating both sheath and dilator
scale on the sheath: control insertion length
big hub design: single-hand easy operation
smooth step between access sheath & dilator
inner diameter: 10Fr, 112Fr
length: 35, 40cm, 50cm
Ingles suction access sheaths

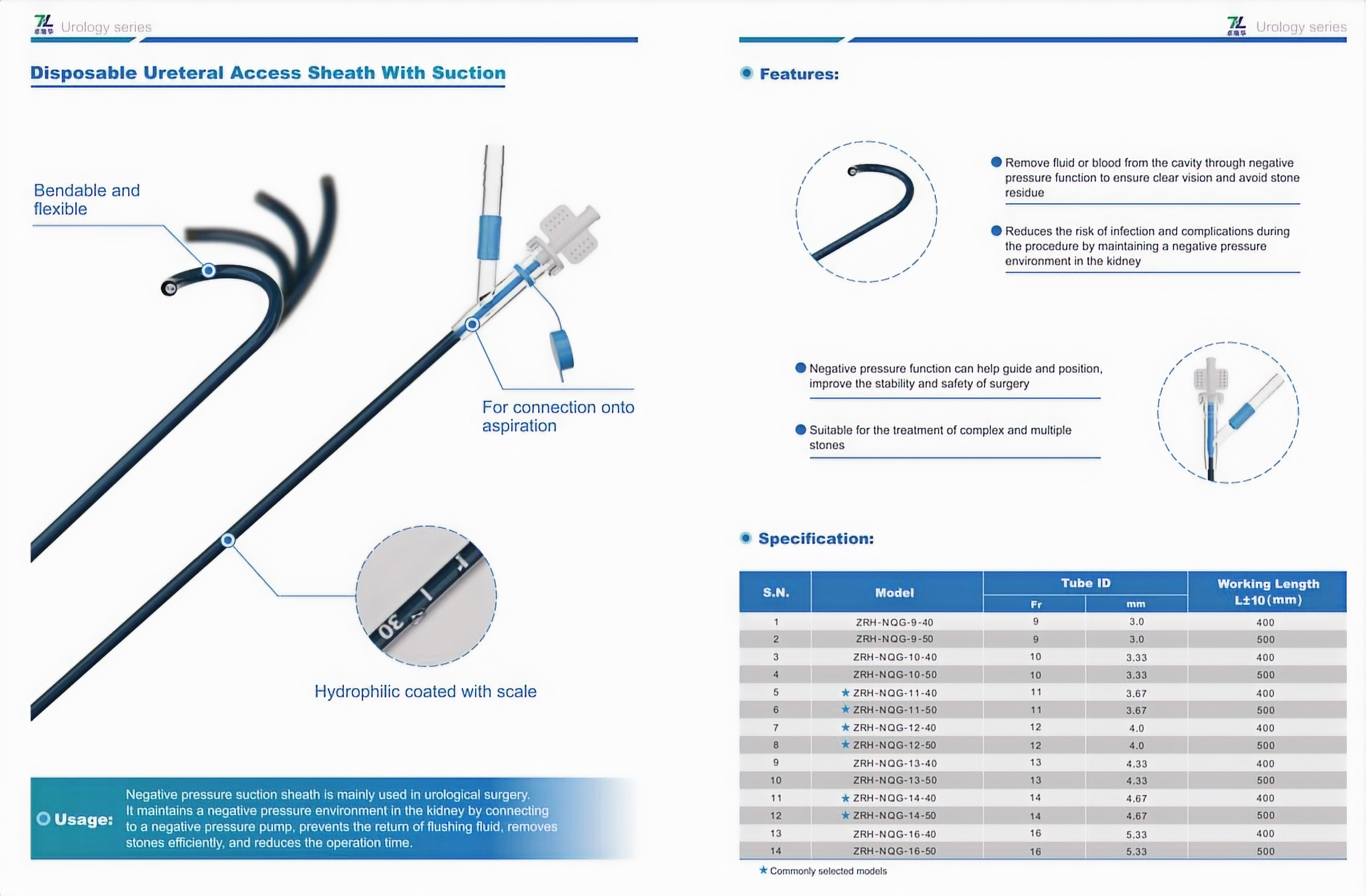

Ureteral Suction Access Sheath (negative pressure tip flexible)
Urology
negative pressure design + tip flexible
consistent pressure reduction (control)
efficient stone clearance
less operation time
Inner diameter: 10-12Fr & 12-14Fr
length: 40, 45, 50cm long
Ingles - Besdata Range
Single Use Flexible Ureterorenoscope 7.5fr
UR-F2
Urology
Single Use Flexible Ureterorenoscope 8.5Fr
UR-F1
Urology
Metal snakebone structure,
CMOS resolution 160K, HD
275° Dual deflection,
Soft smooth Passive deflection,
Straight working channel 1.2mm with adjustable seal,
Photo & Video Buttons on the endoscope Handle
Metal snakebone structure,
CMOS resolution 160K, HD
275° dual deflection,
Soft Smooth Passive deflection,
Photo & video button on the endoscope handle
Single Use Flexible Cystoscope
Urology

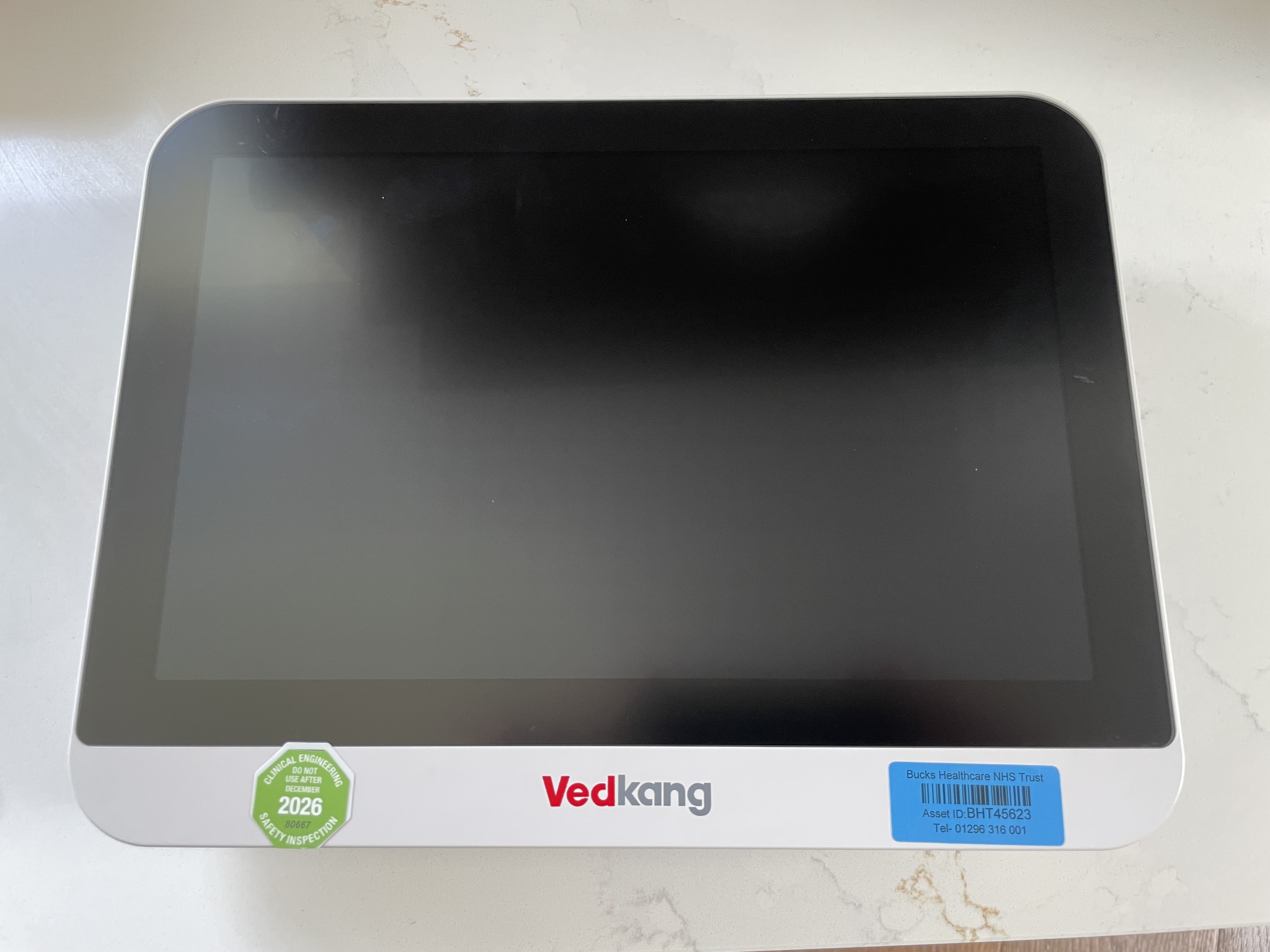

Video Processor (Generation 2)
Urology
Metal snakebone structure
CMOS resolution 640K
Working length 380mm
Distal end outer diameter 5.2mm
Working channel 2.4mm
Dual deflection 210 degree
Excellent HD image quality
easy to use
compatible with different/all Besdata endoscopes
USB connection for external storage device (flash drive)
signal output: 1 DVI +1 SDi + 1 VGA
Ingles Inceler Medical range
Urology - ESWL, Electro Shock Wave & Lithotripsy machines.
Lithobox zero - PCNLÂ
Lithobox zero - PCNLÂ
Erectile disfunction  EDSWT
Electro magnetic ESWL
Orthopaedics
Veterinary Radial ESWT
Radial shockwave
Electro Hydraulic ESWL
Aesthetics
Veterinary Focused ESWT
Ingles Hypho 35Watt Holmium laser - Urology - stones
Hypho Holmium Low Power Laser – 35 Watt
The Hypho Holmium low-power laser is a very affordable high-end solution to treat stones in an optimal way!
The unique SuperPuls function ensures minimal retropulsion, which keeps the stone in place and allows a dusting effect to take place even more efficiently.
The Hypho laser can be combined with different types of laser fibers, which have been carefully tested and certified by us. We have also developed special laser fibers for disposable scopes. The Hypho low power Holmium laser is located in more than 25 locations in the Netherlands and is a product for which Mayumana has designed a complete unique product together with the manufacturer and now is available to the UK market.
Ingles Hypho 35Watt laser dynamics
Combination of laser and laser fiber. Without a good laser fiber it is much more difficult to break that one large stone. And without a good laser, that artfully designed fiber cannot do its job. The Hypho low-power Holmium laser was developed in collaboration with various suppliers of laser fibers. As a result, we have achieved a perfect configuration for several manufacturers, giving us an extensive portfolio in the field of disposable and reusable laser fibres.
The Hypho Holmium laser is the ideal laser for applications in urology and other medical fields (e.g. ENT, orthopedics, gastroenterology and general surgery). The laser with 35 Watt power is easy to operate and has a dusting mode for stone treatments.
In addition to these modes, we have created a special pulse, the Superpulse, which ensures that minimal retropulsion occurs during the treatment of different types of stones. This reduces the stones to dust and is reminiscent of the Thulium Fiber technique, but for a fraction of the price! The pulse is based on an extremely long pulse instead of two short pulses as other techniques offered on the market. The Hypho is a modern Holmium laser that does exactly what the laser is needed for.

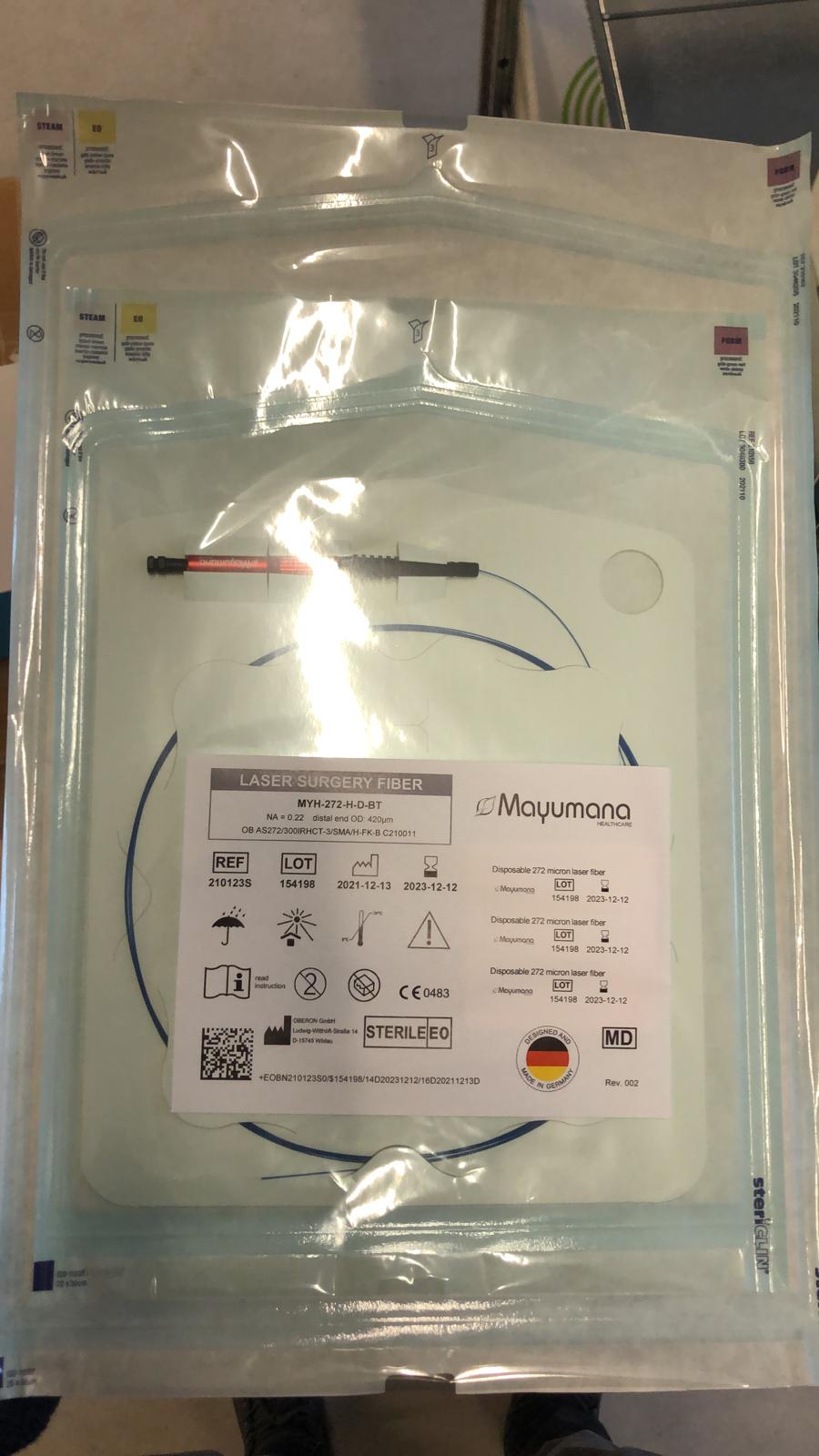

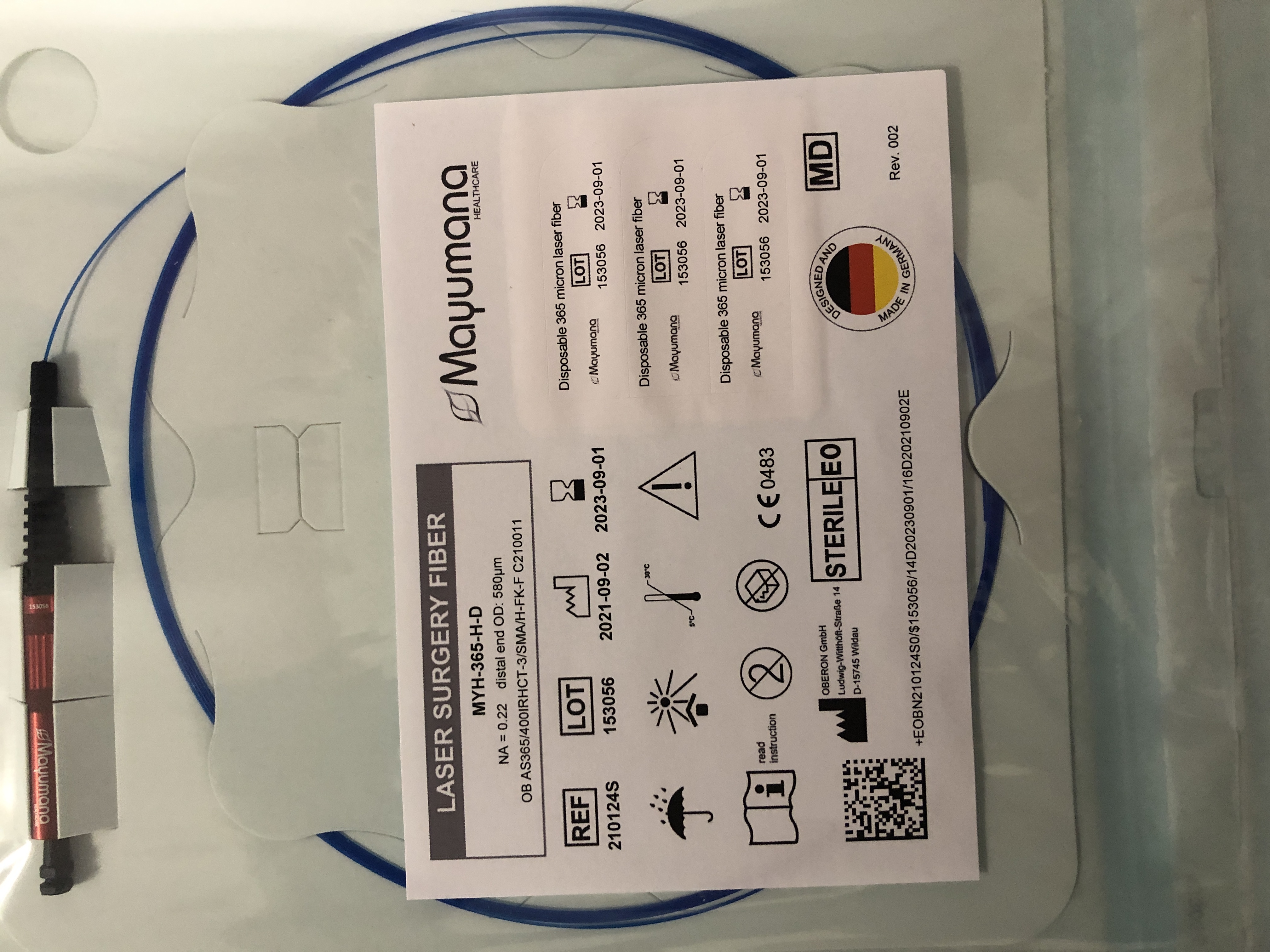

Ingles Laser fibers -
